| MOQ: | Διαπραγματεύσιμος |
| τιμή: | Διαπραγματεύσιμος |
| Τυπική συσκευασία: | Ταινίες σε πλαστικές σακούλες και μετά σε χαρτοκιβώτια |
| Προθεσμία παράδοσης: | 5-8 εργάσιμες |
| Τρόπος πληρωμής: | T/T |
| Δυνατότητα ανεφοδιασμού: | 10000 ρόλοι ανά ημέρα |
Product Description:

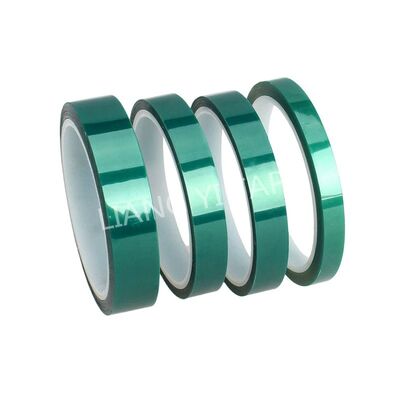

This premium high-temperature green silicone tape is specifically engineered for the protection and insulation of electronic transformers, coils, and other heat-generating components. Combining the exceptional thermal stability of silicone with reliable electrical insulation properties, this tape provides comprehensive protection in demanding electronic applications. The distinctive green color allows for easy identification and quality control during assembly and maintenance.
Key Features:
1.Exceptional High-Temperature Resistance: Formulated with high-grade silicone rubber that withstands continuous exposure to elevated temperatures without degradation, melting, or loss of insulating properties.
2.Superior Electrical Insulation: Provides reliable dielectric protection for transformers and electronic components, preventing short circuits and ensuring operational safety.
3.Excellent Conformability: Highly flexible and conformable, wrapping smoothly around irregular shapes, sharp corners, and tightly wound transformer coils without lifting or gapping.
4.Self-Fusing Capability: Creates a seamless, homogeneous insulation layer that bonds to itself without adhesive residue, providing complete coverage and protection.
5.Halogen-Free & Flame Retardant: Meets stringent safety requirements for electronic applications with flame-retardant properties and environmentally friendly formulation.
6.Distinctive Green Color: The signature green tint provides visual confirmation during quality control and assembly processes, ensuring correct application and easy inspection.
Primary Applications:
1.Transformer Insulation: Ideal for wrapping and insulating electronic transformers of all sizes, providing both electrical insulation and mechanical protection.
2.Coil Winding Protection: Used for securing and protecting coil windings in inductors, solenoids, and electromagnetic components.
3.Electronic Component Masking: Perfect for masking during wave soldering, conformal coating, and other PCB assembly processes that require high-temperature resistance.
4.Wire & Cable Bundling: Applied for bundling and protecting wires and cables in high-temperature environments within electronic devices.
Specifications:
|
Backing material |
Polyester film |
|
Adhsive |
Silicone Adhesive |
|
Color |
Green |
|
Backing thickness(mm) |
0.025-0.05 |
|
Total thickness(mm) |
0.055-0.085 |
|
Length |
10-66 |
|
Width |
0-500 |
|
Peeling strength (N/M) |
≥250 |
|
UL Temperature Rating |
F |
|
Elogation(%) |
≥40 |
|
Breakdown Voltage(kv) |
>3.5kv |
|
|
