| MOQ: | Διαπραγματεύσιμος |
| τιμή: | Διαπραγματεύσιμος |
| Τυπική συσκευασία: | Ταινίες σε πλαστικές σακούλες και μετά σε χαρτοκιβώτια |
| Προθεσμία παράδοσης: | 5-8 εργάσιμες |
| Τρόπος πληρωμής: | T/T |
| Δυνατότητα ανεφοδιασμού: | 10000 ρόλοι ανά ημέρα |
The Red PET Silicone Adhesive Tape is a premium high-temperature masking solution engineered for demanding paint baking, powder coating, and industrial oven curing applications. Constructed with a vibrant red PET film backing and coated with a high-performance silicone adhesive, this tape delivers exceptional thermal stability at continuous operating temperatures up to 155℃. The bold red color offers superior visual identification in fast-paced production environments, enabling operators to quickly spot masked areas, verify placement accuracy, and reduce costly application errors. With a dielectric breakdown voltage exceeding 5kV, it provides reliable electrical insulation alongside its primary masking function. The tape removes cleanly after thermal cycling, leaving zero adhesive residue on painted surfaces, metals, and electronic substrates. Designed for automotive refinishing shops, powder coating facilities, and PCB assembly lines, this red polyester tape combines high visibility with consistent, residue-free performance to support rigorous quality standards in industrial manufacturing.

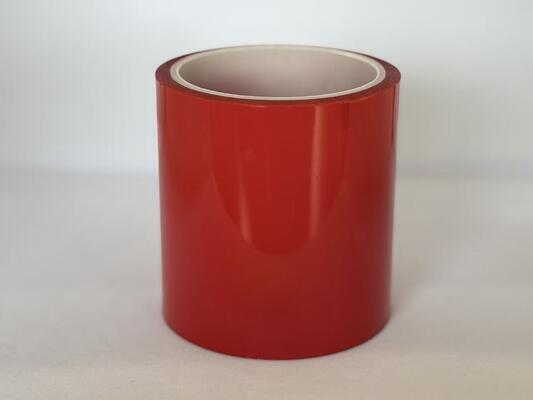

Product: Red PET Silicone Adhesive Tape – 155℃ Masking for Paint Baking & Oven
| Property | Unit | Typical Value |
|---|---|---|
| Physical Properties | ||
| Total Thickness | mm | 0.05 ± 0.005 |
| Backing Thickness | mm | 0.038 |
| Adhesive Type | – | Silicone |
| Backing Material | – | PET Film (Red) |
| Color | – | Red |
| Elongation at Break | % | > 40 |
| Peel Adhesion | g/25mm | > 500 |
| Thermal & Electrical | ||
| Long-Term Temp Resistance | ℃ | 155 |
| Dielectric Breakdown Voltage | kV | > 5.0 |
| Chemical Resistance | – | Excellent |
| Removability | ||
| Adhesive Residue | – | None |
| Storage | ||
| Recommended Storage Temp | ℃ | 23 |
| Recommended Storage Humidity | % RH | 65 |
| Shelf Life | Months | 6 |
Q: Will this tape withstand a full automotive paint bake cycle?
A: Yes. The tape is rated for continuous use at 155℃, making it fully compatible with standard automotive paint bake cycles (typically 60-90 minutes at 140℃–155℃). It maintains adhesion and removes cleanly after cooling.
Q: Does the red pigment bleed or transfer onto painted surfaces?
A: No. The pigment is fully encapsulated within the PET film and does not bleed, fade, or transfer to masked surfaces during oven cycling. Your paint finish remains pristine.
Q: Can this tape be used on freshly painted surfaces?
A: It is recommended to apply the tape only to fully cured painted surfaces. The silicone adhesive is designed for clean removal from cured coatings and metal substrates.
Q: Is this tape suitable for lead-free wave soldering?
A: Yes. The 155℃ continuous rating and >5kV dielectric strength make it an excellent choice for masking PCB gold fingers and connectors during lead-free wave soldering processes.
Q: What is the recommended storage condition and shelf life?
A: Store in original packaging at 23℃ (73℉) and 65% relative humidity. Under these conditions, the tape maintains optimal performance for 6 months from date of shipment. Avoid exposure to direct sunlight and high humidity.
|
|
